Viewing Bills Of Materials

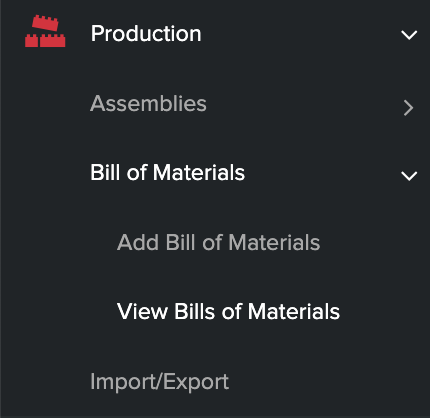

Go to Production | Bill of Materials | View Bills of Materials.
Screen Shot 2023-09-15 at 12.17.12 PM.png

BOM Filters

  • Bill Number: Specify a Bill Number to display.
  • Product: Specify a Product Code/Description or click on the Search icon to search for a product.
  • Obsolete: You can select if you want to display Obsolete BOM(s).
  • Display Associated top-level BOM(s): If you have multi-level BOM(s) and you want to see all the associated top-level BOM(s) for a particular Bill Number or Product.

    Screen Shot 2023-09-15 at 12.18.12 PM.png

BOM Functions

BOM Grid Layout

Default Columns:

  • Bill Number:  Links to BOM
  • Product Code:  Links to Product Details
  • Product Description:  Links to Product Details
  • Sub BOM Count: This column displays the number of Sub BOMs you have for each Bill Of Materials.
  • Can Auto Assemble:  Indicates whether the BOM is an auto assembled product
  • Can Auto Disassemble: Indicates whether the BOM is an auto disassembled product
  • Obsolete:  Indicates whether the BOM is obsolete or not
  • Action cog options:
    • Print BOM: If you want to print only the top-level components of a BOM.
    • Print BOM Tree: If you want to print the top-level BOM(s) and all the associated Sub BOM(s).
    • Clone: Creates a copy of the existing components of the BOM for a different assembled product.

Hidden Columns:

  • Comments
  • Duration Type
  • Expected Duration
  • Product Group
  • Production Hours Per Day

Printing Bill of Materials

You can choose to print only the top-level BOM(s) or multi-level BOM(s) from the following pages:

  • Production | Bill of Materials | View Bills of Materials: From the action cog, select any of the following options:
    • Print BOM: If you want to print only the top-level components of a BOM.
    • Print BOM Tree: If you want to print the top-level BOM(s) and all the associated Sub BOM(s).
  • Production | Bill of Materials | View Bills of Materials: Open the BOM you want to print and select any of the following options from the Print button.
    • Print BOM: If you want to print only the top-level components of a BOM.
    • Print BOM Tree: If you want to print the top-level BOM(s) and all the associated Sub BOM(s).

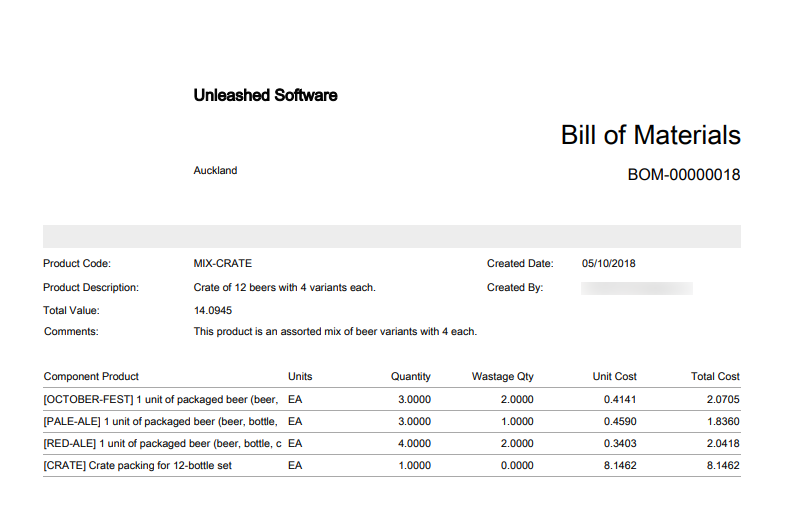

Print BOM Sample Image

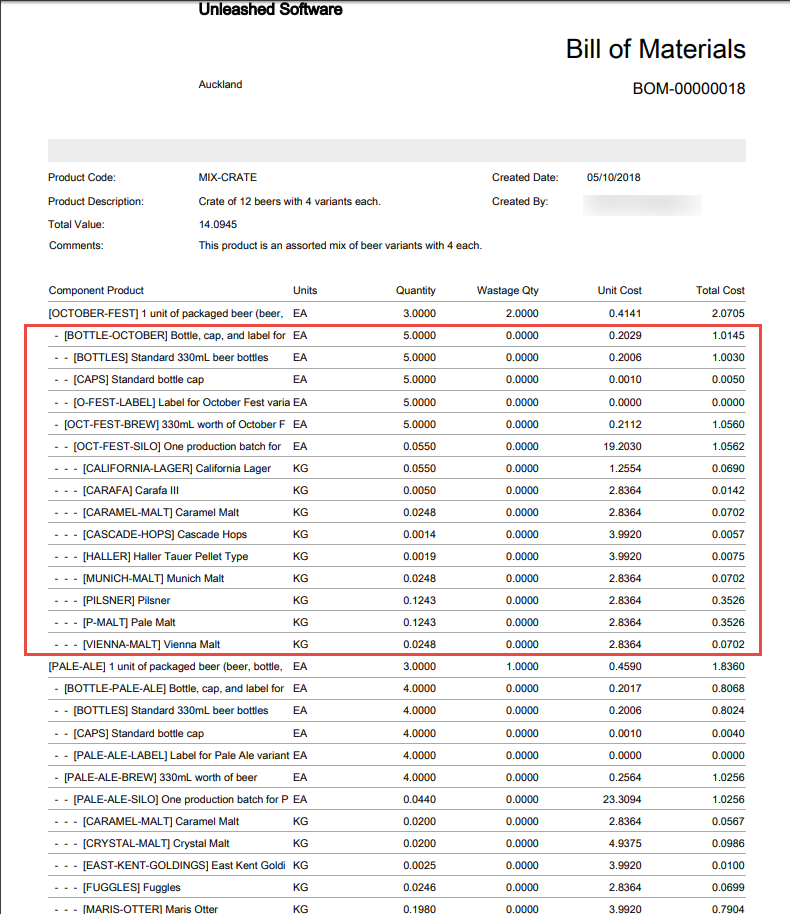

Print BOM Tree Sample Image
