How to show component products for an Assembled Product on Packing Slips

Follow

To ensure the components of an assembled product are included on a Sales Order's Packing Slip you will need to make "Component Products" visible in the Packing Slip's Doc Designer template. When an assembled product is ordered and either an auto assembly or manual assembly is generated from the Sales Order, the assembly's components will be displayed when the Packing Slip's template is printed.

  1. From Unleashed's main menu, for to Settings, Doc Designer and select Packing Slips.
  2. Use the Temaplate Name dropdown to select the Packing Slip template you want to edit.
    NOTE: Classic and Formal templates cannot be edited.

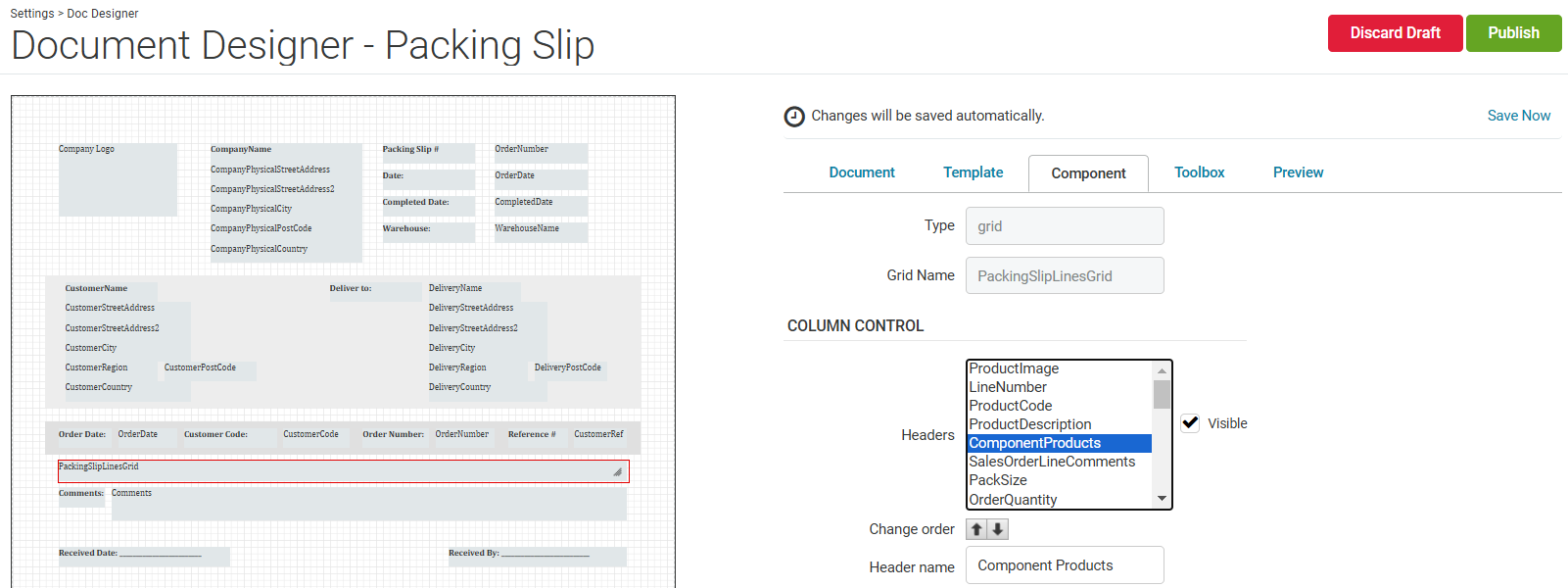

  3. Click on PackingSlipLinesGrid on the template layout.
  4. Select the Components tab.
  5. In the Headers menu, select ComponentProducts and tick the Visible checkbox
  6. Click Publish.
